Coal Through a Microscope


It's far more than a black rock!



If you think that coal is a boring black rock then you have never seen it through a transmitted light microscope. The microscope reveals coal's hidden beauty as well as its organic composition.

Coal seams form from thick accumulations of plant debris, usually deposited in a swamp. The tiny particles of plant debris and swamp sediment give a spectacular show of color when viewed through the microscope. Well preserved woody material is bright red, spores are brilliant yellow, algal material is yellow-orange, charcoal and opaque minerals are black, and grains of many transparent minerals are white. It's hard to believe that coal can be so colorful!


Let's Start With a Hand Specimen



To best understand coal we should start with a hand specimen of coal like the one shown below. If we look closely we will see that it is not a uniform black. Instead there are different shades of black and also different lusters.

The coal shown below is a "bright banded" coal. It is dominated by bright shiny bands which represent well preserved woody material. Between those bright bands are some thin dull bands. Those dull bands are composed of substances such as mineral material, degraded woody material and charcoal. Charcoal? Yes, some coals contain lots of charcoal. There were fires in the swamps just like the recent fires in the Everglades.

coal

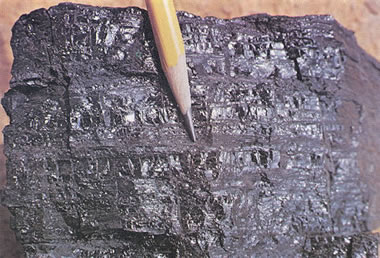

When viewed closely, most pieces of coal are composed of alternating bands of bright and dull material. Image by West Virginia Geological and Economic Survey.


Thin Sections



"Transmitted light" means that light is passing through the coal, just like light passes through a stained glass window. This requires a very thin slice of coal called a "thin section". The slice must be so thin that light easily passes through it. Here's how a thin section is made.

First a small block of coal is cut with a saw to form a flat surface. The surface is then ground and polished until it is exceptionally smooth. That flat surface is then glued to a microscope slide.

The block is then cut again - parallel to the face of the microscope slide. This yields a thin slice of coal glued to the glass slide. It's not thin enough yet so the thin slice of coal is ground thinner and thinner. The craftsman grinds a little and checks the thinness, grinds a little more and checks the thinness. When it is almost the right thinness, grinding is stopped and the slice of the coal is polished to remove the tiny scratches of sawing and grinding. A perfectly smooth surface is needed. If scratches are not removed a uniform passage of light through the thin section will not occur. (Note the few tiny scratches visible in the thin section at right. It has a very uniform thinness.)


Many Types of Coal



As mentioned above, coal forms from plant debris that accumulates in an environment such as a swamp. There are many possible situations of plant types and environmental conditions that produce a variety of coal types.

Within a swamp some areas might be shallow and other areas deep. Some areas might have woody plants and other areas grassy. The environment might be changing over time, making the bottom (older part) of the coal seam very different from the top.

These variations result in the formation of many different types of coal - all within the same coal seam.

swamp

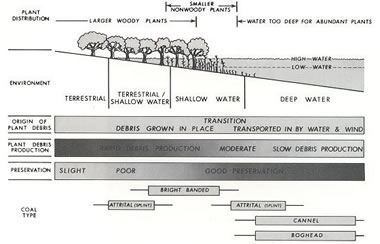

A generalized diagram of a swamp, showing how water depth, preservation conditions, plant types and plant productivity can vary in different parts of the swamp to yield many types of coal. Illustration by the West Virginia Geological and Economic Survey.


You have seen how plant types and environmental conditions can produce a variety of types of coal within a single swamp. Now imagine two different coal swamps, in different parts of the world and at different points in geologic time. They might have coals of even greater diversity.

Coal is a very complex rock and that complexity is part of what makes it so interesting.

Contributor:



Find it on Geology.com




More from Geology.com


US Diamond Mines
US Diamond Mines: Did you know that diamonds can be found in the United States?
rocks
Rock Gallery: Photos of igneous, sedimentary and metamorphic rocks.
shale gas
Shale Gas is natural gas trapped within shale. It is a growing source of US supply.
Sliding Rocks
Sliding Rocks Mystery: What causes these rocks to slide across a Death Valley playa?
Vredefort Impact Crater
The Vredefort Crater is the largest and 2nd oldest impact crater visible on Earth.
Plate Tectoncs
Zoom in on Plate Boundaries: See the details of plate tectonics in satellite view.
Plate Tectonics
Plate Tectonics: Articles and maps about plate tectonics and the interior of Earth.
uses of gold
The Many Uses of Gold: Unique properties make gold one of the most useful metals.


coal

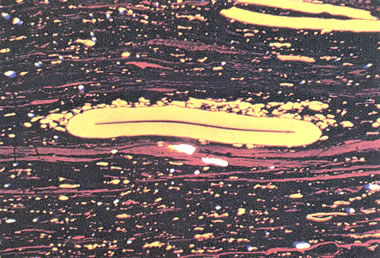

This is a highly magnified view of splint coal in transmitted light. The large yellow object in the center of this image is a spore - a reproductive cell of the coal-forming vegetation. It is about two millimeters long. The spore was probably round before it became part of the coal-forming plant debris. It was squeezed flat after burial. The thin red bands running horizontally across this view are thin shreds of well-preserved woody material. The tiny yellow and orange particles are smaller spores and algal debris. The black material is either charcoal or opaque mineral matter. This coal does not contain a lot of well preserved wood. Instead it is mostly charcoal and mineral debris. The material in this view is representative of coal that formed under conditions that were not idea for the preservation of plant material.




vitrinite

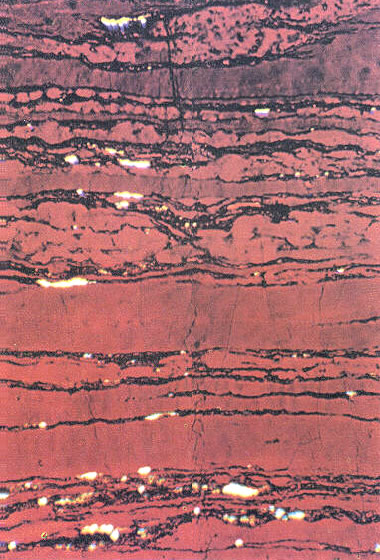

A thin section of coal made up almost exclusively of very well-preserved woody material. Note the thick red bands. Each of these represents a twig or other preserved piece of woody material. This view shows only minor amounts of mineral matter and degraded plant materials. The area shown in this thin section is about two millimeters wide. It represents the type of coal that forms under excellent conditions of plant preservation.


spores

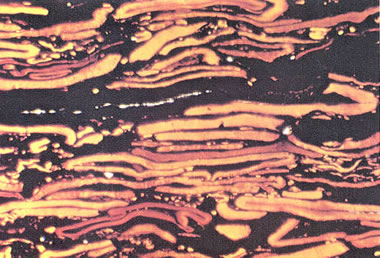

This is a thin section of "cannel coal". This type of coal is composed of large amounts of spores, resins or algal materials. These types of plant debris are very resistant to decay. When they are found in high concentrations with charcoal and mineral matter it suggests swamp conditions where the woody material decayed away and the more resistant materials accumulated. This image represents a view of coal that is about four millimeters wide.


boghead

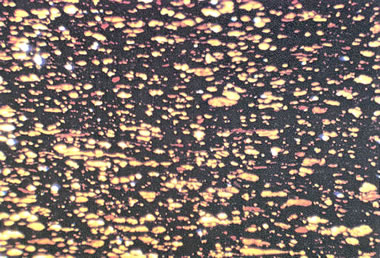

The coal shown in this view is known as "boghead coal". It contains large amounts of preserved algal debris which appear in this image as the yellow-orange particles. This type of material might accumulate on the fringes of a swamp where there is a lack of wood and other coal-forming plant materials. This image represents a view of coal that is about four millimeters wide.
